Trimble Earthworks

Control the future. we do.

SITECH is proud to present Trimble's next generation machine control: Trimble Earthworks. Trimble and SITECH bring machine technology to the next level.

SITECH is proud to present Trimble's next generation machine control: Trimble Earthworks. Trimble and SITECH bring machine technology to the next level.
The Trimble® Earthworks Grade Control Platform offers groundbreaking features for all machine types. It is designed to help you do more in less time.

State-of-the-art software and hardware give operators of all skill levels the ability to work faster and more productively than ever before.

The intuitive software was created in collaboration with construction equipment operators around the world, so the interface is optimized for ease of use and productivity.

Trimble gadget Trimble gadget

COMPONENTS

TRIMBLE TD510 / TD520

The Trimble 10-inch TD520 and 7-inch TD510 displays are the premium solution to ensure the best user experience with the Trimble Earthworks Grade Control Platform.

  • Android operating system for easy software extensibility
  • Powerful quad core processor platform with dedicated graphics processor
  • Integrated Bluetooth and Wi-Fi for wireless connectivity
  • Quick release RAM mounting for daily theft protection removal
TRIMBLE TD510 / TD520

CONFIGURATIONS

DOZERS

Cab-Mounted Dual GNSS

  2. TD520 or TD510 Display
  3. SNRX30 On-machine Radio
  4. SNM941 Connected Site Gateway
  5. EC520 Electronic Controller
  6. GS520 Sensor x2
  7. Mast and MT900 Machine Target
Cab-Mounted Dual GNSS

Universal Total Station

  1. MS995 or MS975 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. EC520 Electronic Controller
  5. NavController III (optional Horizontal Steering Control)
  6. GS520 Sensor x2
  7. TD520 or TD510 Display
Universal Total Station

Excavators

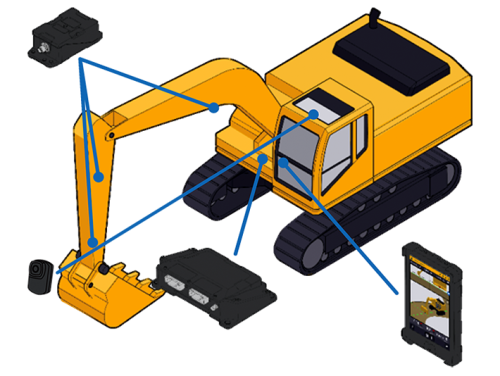

Core

  1. GS520 Sensor
  2. Camera (optional augmented reality view)
  3. EC520 Electronic Controller
  4. TD520 or TD510 Display
Core

Automatic

  1. MS995 or MS975 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. VM510 Valve Module
  5. TD520 or TD510 Display
  6. EC520 Electronic Controller
  7. Camera (optional augmented reality view)
  8. GS520 Sensor
Automatic

Dual/Single GNSS

  1.  MS995 or MS975 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. TD520 or TD510 Display
  5. EC520 Electronic Controller
  6. Camera (optional augmented reality view)
  7. GS520 Sensor
Dual/Single GNSS

Universal Total Station

  1. MT900 Machine Target
  2. SNRX30 On-machine Radio
  3. SNM941 Connected Site Gateway
  4. TD520 or TD510 Display
  5. EC520 Electronic Controller
  6. Camera (optional augmented reality view)
  7. GS520 Sensor
Universal Total Station

Graders

Blade Mounted Duel GNSS

  1. MS995 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. Rotation Sensor
  6. EC520 Electronic Controller
  7. SNM941 Connected Site Gateway
  8. VM510 Valve Module (as required)











Graders

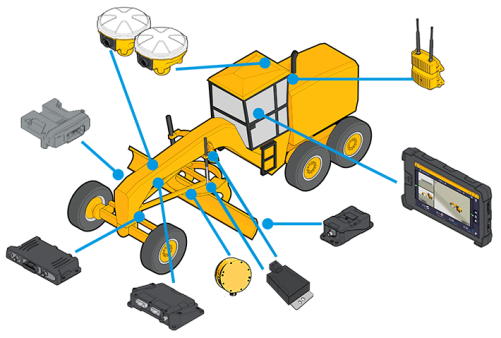

Mastless Dual GNSS

  1. MS995 or MS975 GNSS Smart Antennas*
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. GS510 Sensors
  6. Rotation Sensor
  7. EC520 Electronic Controller
  8. SNM941 Connected Site Gateway
  9. VM510 Valve Module (as required)
Mastless Dual GNSS

Universal Total Station

  1. Mast and MT900 Machine Target
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. Rotation Sensor
  6. EC520 Electronic Controller
  7. SNM941 Connected Site Gateway
  8. VM510 Valve Module (as required)
Universal Total Station

Mounted Single GNSS

  1. MS995 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. Rotation Sensor
  6. EC520 Electronic Controller
  7. SNM941 Connected Site Gateway
  8. VM510 Valve Module (as required)
Mounted Single GNSS

Compact Graders

Dual Lazer

  1. MS995 GNSS Smart Antennas
  2. SNRX30 On-machine Radio
  3. TD520 or TD510 Display
  4. GS520 Sensor
  5. Rotation Sensor
  6. EC520 Electronic Controller
  7. SNM941 Connected Site Gateway
  8. VM510 Valve Module (as required)
Dual Lazer

Total Station

  1.  MT900 Machine Target
  2. EC520 Electronic Controller
  3. TD520 or TD510 Display
  4. GS520 Sensor
Total Station

Dual GNSS

  1. MS995 or MS975 GNSS Smart Antenna(s)
  2. EC520 Electronic Controller
  3. TD520 or TD510 Display
  4. GS520 Sensor
Dual GNSS

All in One App

It will not get easier than this.

Supports 3rd Party Android Devices. Easy access to all functionalities. Three touches on the display and you are already there.

You no longer have to search for functions and settings. Swipe, zoom, and click. Simple and intuitive.

You will have easy access to instruction videos and other help if needed. Trimble Earthworks is probably the market's most easy-to-use software for operators.

  • Landscape and Portrait modes

  • 3D Views

  • Configurable - See what you want, how you want

  • 60 Month software updates included
Trimble gadget Trimble gadget

Earthworks Assistant App

The easier way to access critical Earthworks learning material and documentation.

SITECH is proud to present Trimble's next generation machine control: Trimble Earthworks. Trimble and SITECH bring machine technology to the next level.
The Trimble® Earthworks Grade Control Platform offers groundbreaking features for all machine types. It is designed to help you do more in less time.

State-of-the-art software and hardware give operators of all skill levels the ability to work faster and more productively than ever before.

The intuitive software was created in collaboration with construction equipment operators around the world, so the interface is optimized for ease of use and productivity.
